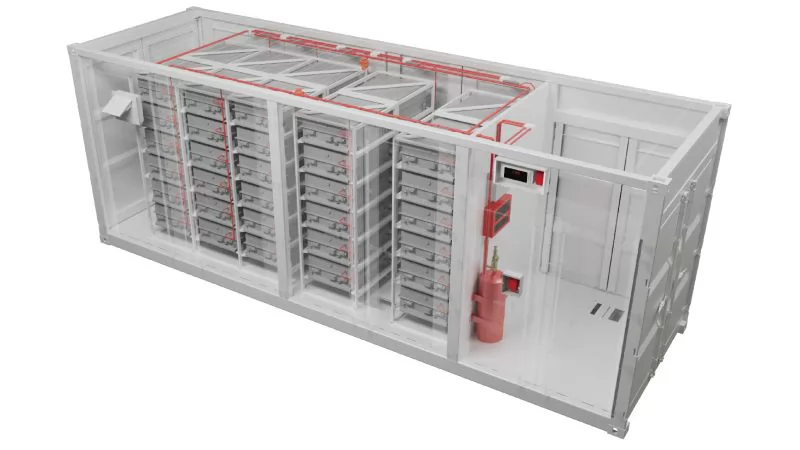

BESS Power Station: Fire Protection Solution (Cylinder-Typed, MODULE- Level + Container- Level)
Description
Guo Anda’s cylinder-typed pack-level fire protection solution for energy storage power station uses FK-5-1-12 fire extinguishing system to perform accurate fire protection for the battery PACK. When thermal runaway happens in a PACK, the multi-functional composite sprinkler can quickly detect the fire, and an alarm signal is sent out. After the controller receives the fire alarm signal, the FK-5-1-12 fire extinguishing system is intelligently activated, and the extinguishant is accurately and quickly released into the PACK, effectively ensuring the fire protection of the energy storage power station.
Product Feature
1.Precise prevention
The system takes the PACK as the protected unit, and the environment in the PACK is detected and analyzed in real time through the composite sprinkler. When a fire occurs, the system can quickly spray the extinguishant to the inside of the PACK.
2.Efficient linkage

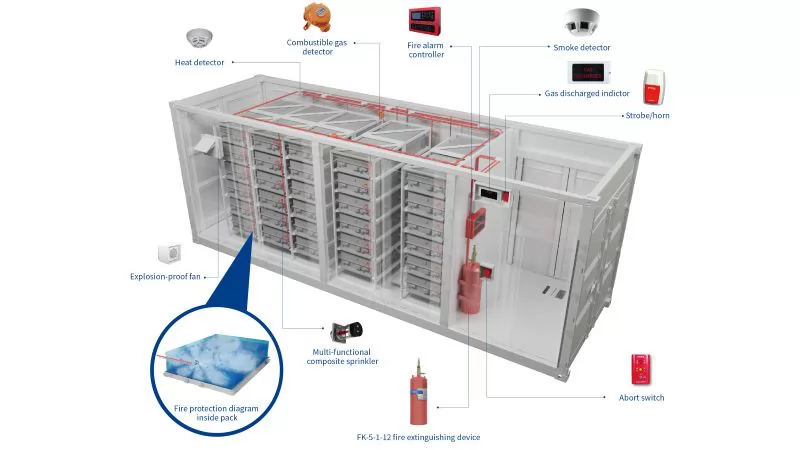

The system is linked with abort switch, explosion-proof fan, ventilation port, pressure relief opening and other protection devices, which ensure the system is safe and reliable.
3.Safe and reliable
Equipped with FK-5-1-12 fire extinguishing device, this system realizes the rapid response, active protection and efficient fire suppression. Therefore, it can comprehensively protect the BESS.

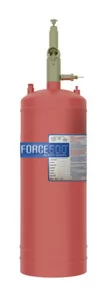

FK-5-1-12
Fire Extinguishing Device
| Item | Specification & Parameter |
|---|---|
| Model code | 14817 |
| Storage capacity | 62L |
| Valve outlet size (mm) | 31.75 |
| Weight (kg) | 44.5 |
| Filling pressure (PSI/MPa) | 500/3.45 |
Multi-Function
Composite Sprinkler
| Item | Specification & Parameter |
|---|---|
| Three-in-one sprinkler | Release, detection, selector valve control |
| Workingpressure | 2.5MPa |
| Automatic thermal-sensitive activation threshold | 68℃±10℃ |
| Connecting thread | M16X1.5 |
| Installation method | Installed outside the PACK |
| Spray angle | 60°±10° |
| Detected parameter | CO, H2, temperature |
| Mounting bolt | M4*10 |
| Flow coefficient | 0.8±0.1 |
| Mode of communication | CAN |
| Mounting hole size | φ31.5mm |
Fire Alarm Controller
| Item | Specification & Parameter |
|---|---|
| Model code | V16847 |
| Dimensions (mm) | 480x120x335 (LxWxH) |
| Input voltage (V) | 100 ~ 120VAC/200 ~ 240VAC |
| Input Current (A) | 3A @ 100 ~ 120VAC/1.7 A @ 200 ~ 240VAC |
| Cable specification (mm²) | > 1.5 mm² |
| Standby power (V) | 7AH/12V, Two pieces |
| Minimum operating voltage (V) | 21 ± 0.5 V |
| Maximum operating current (A) | 2.5 A |
| Operating temperature (°C) | 0~+40°C |
| Working humidity | ≤95% |
