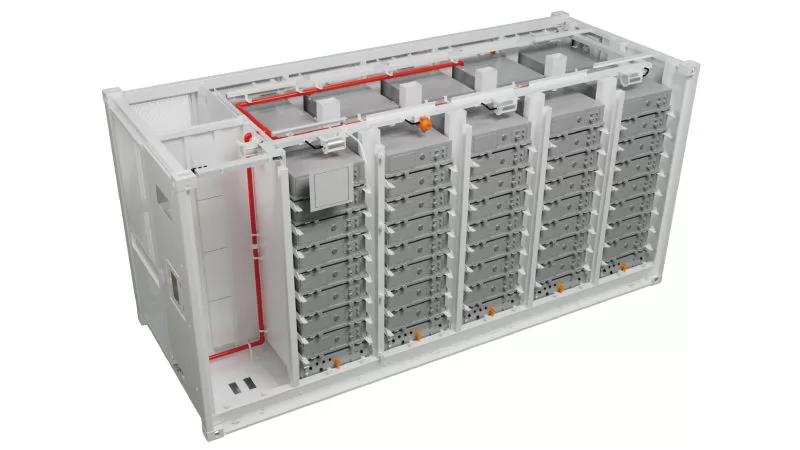

BESS Power Station: Fire Protection Solutions (Aerosol, Container-Level)
Description

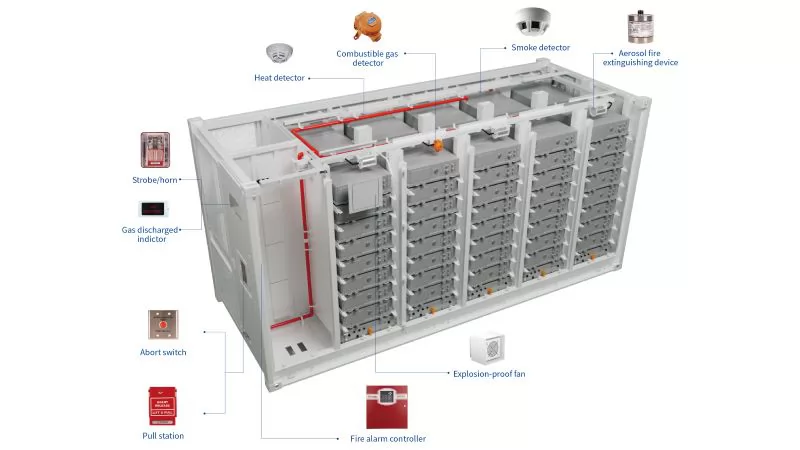

Guo Anda’s container-level fire protection solution for BESS uses aerosol fire extinguishing device to perform fire protection for the BESS, and can detect multi-dimension data such as the temperature, smoke, flammable gas content, etc. inside the BESS. When a fire occurs in the BESS, the detectors can quickly detect the fire, and an alarm signal is sent out. After the fire alarm controller receives the fire alarm signal, the aerosol fire extinguishing system is intelligently activated, and the extinguishant is quickly released to effectively ensure the fire protection of the BESS.
Features
1.Efficient extinguishing
Equipped with aerosol fire extinguishing device, it can realize the rapid response, active protection and efficient fire suppression. Therefore, it can comprehensively protect the BESS.
2.Efficient linkage
The system is linked with abort switch, explosion-proof fan, ventilation port, pressure relief opening and other protection devices, which ensure the system is safe and reliable.<
3.Safe and reliable
The components adopt international leading technology and have obtained a number of international certificates.
Aerosol Fire Extinguishing Device
| Model | Component No. | Weight(Kg/lb) | Length(mm/inch) | Diameter(mm/inch) | Release time (seconds) |
|---|---|---|---|---|---|
| 30E | 15100 | 0.4/0.8 | 86/3.7 | 51/2.0 | 7.0 |
| 60E | 15110 | 0.5/1.1 | 129/5.0 | 51/2.0 | 10.0 |
| 60ME | 15111 | 0.5/1.2 | 153/6.0 | 51/2.0 | 10.0 |
| 100E | 15120 | 0.9/2.0 | 136/5.3 | 76/3.0 | 12.0 |
| 250E | 15130 | 2.5/5.6 | 154/6.1 | 127/5.0 | 12.0 |
| 500E | 15140 | 3.4/7.6 | 205/8.1 | 127/5.0 | 23.0 |
| 1000E | 15150 | 7.1/15.7 | 192/7.5 | 203/8.0 | 16.0 |
| 1500E | 15160 | 8.6/19.0 | 230/9.0 | 203/8.0 | 23.0 |
| 2500E | 15170 | 11.3/24.9 | 293/11.5 | 203/8.0 | 36.0 |
