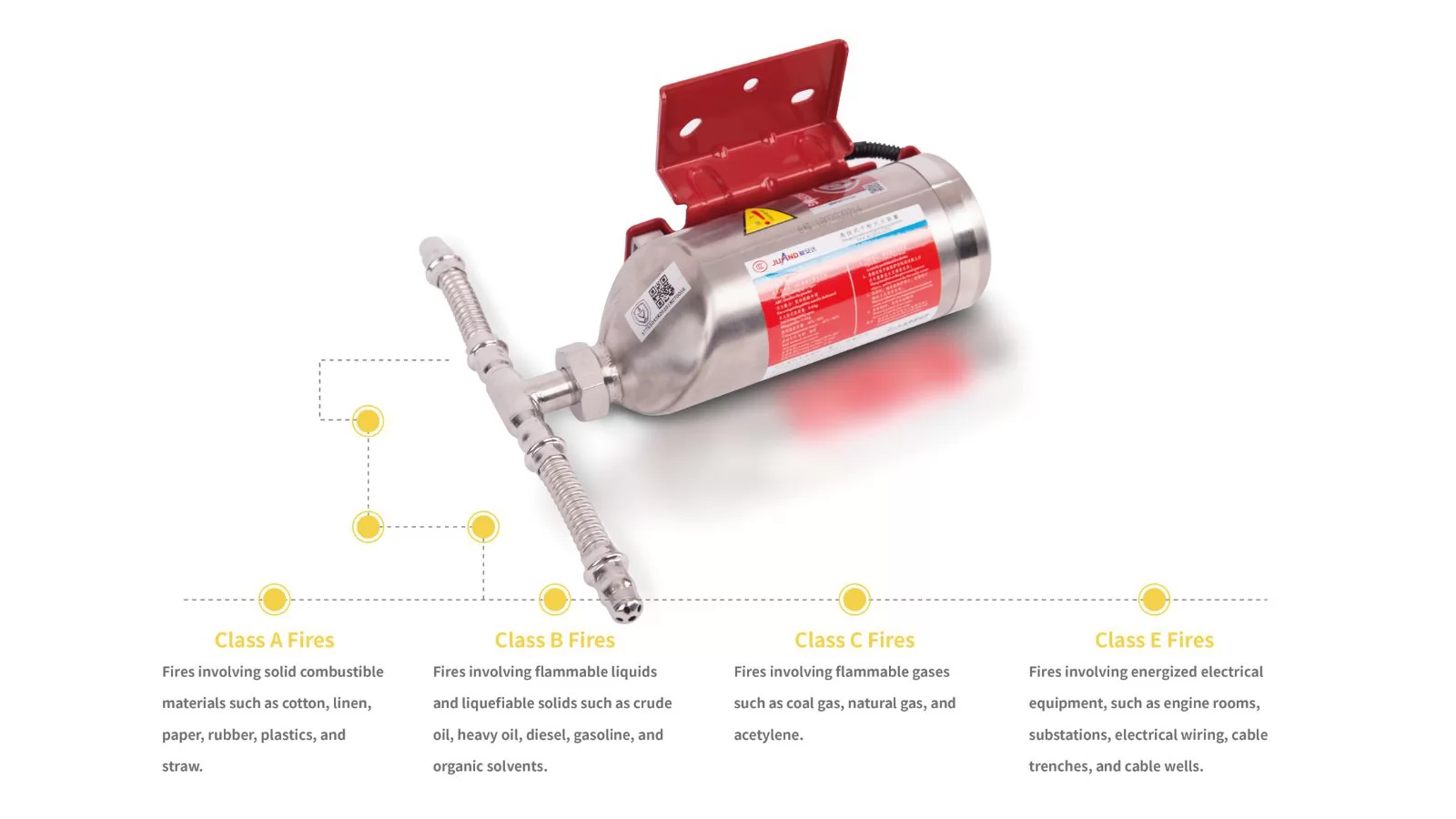

FFX-ACD0.5/0.6/0.8-GTC Automatic Fire Extinguishing Device

Introduction:

This device is specifically designed for high-temperature, fire-prone areas such as ship and vehicle engine compartments, battery compartments, and retarders. It is fixedly installed in these locations, engineered to withstand harsh working environments, and offers a certain level of shock resistance.

In the event of a fire, the device automatically detects and initiates fire suppression. It is equipped with a non-electric self-starting mechanism, a quick-connect electrically triggered device (with a manual switch for forced activation), and an optional activation feedback system, providing multiple activation methods for robust protection and timely feedback upon activation.

When integrated with an early fire detection and alarm system, the device enables early fire warnings and automatically initiates fire suppression at the onset of a fire in the protected area.

The device utilizes solid-state ammonia dual-drive output and pressure-free storage. Upon activation, it instantly pressurizes internally, with the valve opening at a set pressure. Employing a multi-nozzle pipeline delivery system for the extinguishing agent, it ensures a prolonged effective spray duration, rapidly and evenly dispersing the agent across the protected space.

This creates an immediate flooding effect, providing comprehensive protection to the safeguarded area and effectively preventing secondary fires.

Scope of Application:

The device is specifically engineered for high-temperature, fire-prone areas such as ship and vehicle engine compartments, battery compartments, and retarders. It is fixedly installed in these locations, suitable for harsh working environments, and possesses a certain level of shock resistance.

Specification Model
