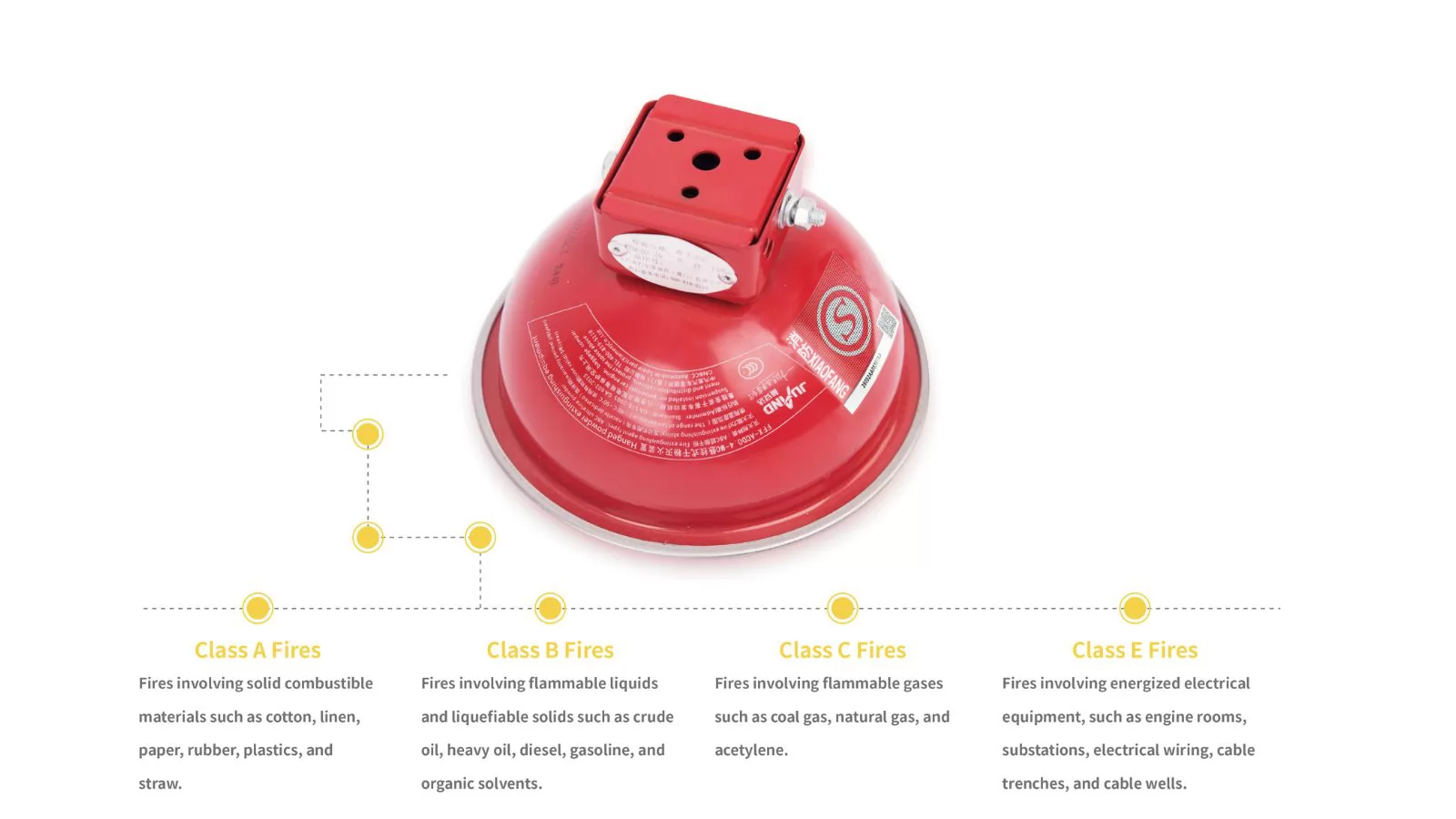

FFX-ACD0.3/0.4/0.5-MC Automatic Fire Extinguishing Device
Description
Introduction:
This device is specifically engineered for high-temperature, fire-prone areas such as ship engine compartments, vehicle engine compartments, battery compartments, and retarders. It is fixedly installed in these locations, designed to withstand harsh working environments, and offers a certain level of shock resistance.
In the event of a fire, the device automatically detects and initiates fire suppression. It is equipped with a non-electric self-starting mechanism, a quick-connect electrically triggered device (with a manual switch for forced activation), and an optional activation feedback system. With multiple activation methods, it provides robust protection and delivers timely feedback upon activation.
When integrated with an early fire detection and alarm system, the device enables early fire warnings and automatically initiates fire suppression at the onset of a fire in the protected area.
The device employs a solid-gas conversion drive mechanism and pressure-free storage. Upon activation, it instantly pressurizes internally, with the valve opening at a set pressure. The extinguishing agent is rapidly and evenly dispersed through a horn-shaped nozzle, creating an immediate flooding effect in the protected space. This ensures comprehensive protection of the safeguarded area and effectively prevents secondary fires.
Scope of Application:
The device is specifically designed for high-temperature, fire-prone areas such as ship engine compartments, vehicle engine compartments, battery compartments, and retarders. It is fixedly installed in these locations, suitable for harsh working environments, and possesses a certain level of shock resistance.
Specification Model Key Parameters
| Specification Model | FFX-ACD0.3-MC | FFX-ACD0.4-MC | FFX-ACD0.5-MC |
|---|---|---|---|
| Type of Fire Extinguishing Agent | ABC ultra-fine dry powder fire extinguishing agent | ABC ultra-fine dry powder fire extinguishing agent | ABC ultra-fine dry powder fire extinguishing agent |
| Mass of Fire Extinguishing Agent (g) | 300+15 | 400+20 | 500+25 |
| Heat-induced Combustion Temperature (°C) | 170±15 | 170±15 | 170±15 |
| Starting Method | Electric control, temperature control | Electric control, temperature control | Electric control, temperature control |
| Injection Time (s) | ≤1 | ≤1 | ≤1 |
| Operating Ambient Temperature (°C) | -40～+90 | -40～+90 | -40～+90 |
| Safe Current (mA) | ≤250 | ≤250 | ≤250 |
| Starting Current (mA) | ≥800 | ≥800 | ≥800 |
| Operating Voltage (V) | DC 9～24 | DC 9～24 | DC 9～24 |
| Starting and Feedback Interface Type | 282104-1, 282080-1 | 282104-1, 282080-1 | 282104-1, 282080-1 |
| Weight (g) | 750±50 | 850±50 | 950±50 |
| Overall Dimension (mm) | ∅165*101 | ∅165*101 | ∅165*101 |
