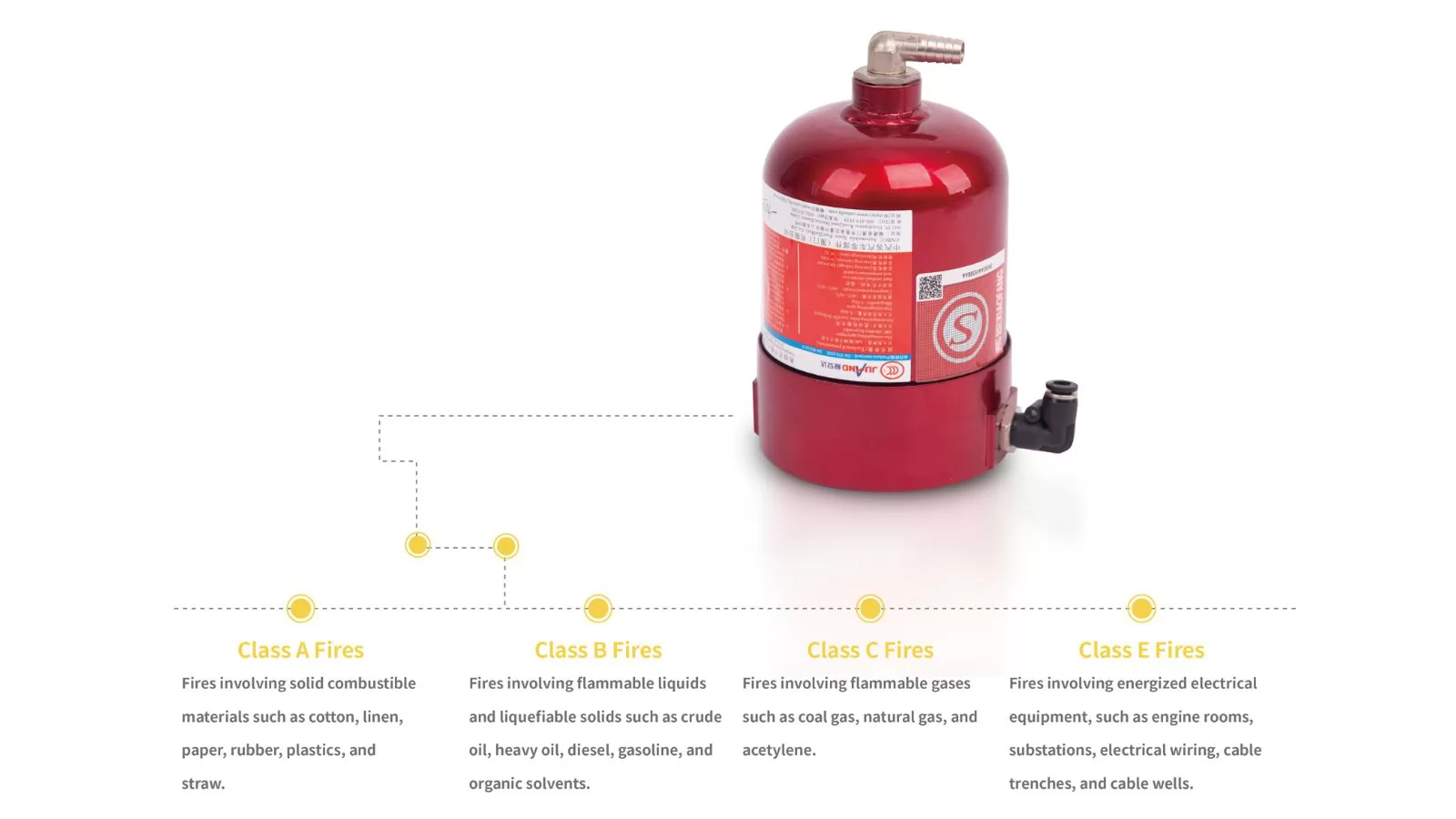

FFX-ACD0.4-GKT Automatic Fire Extinguishing Device
Description
Introduction:
This device is specifically designed for high-temperature, fire-prone areas such as vehicle and ship engine compartments, battery compartments, and retarders. It is fixedly installed in these locations, engineered to withstand harsh working environments, and offers a certain level of shock resistance.
The device comprises components including a drive medium, extinguishing agent, extinguishing agent storage tank, release valve, fire suppression activation components (non-electric self-starting mechanism and quick-connect electrically triggered device), manual activation switch, activation feedback system, and mounting brackets.
In the event of a fire, the device automatically detects and initiates fire suppression. It is equipped with a non-electric self-starting mechanism, a quick-connect electrically triggered device (with a manual switch for forced activation), and an optional activation feedback system, providing multiple activation methods for robust protection and timely feedback upon activation.
When integrated with an early fire detection and alarm system, the device enables early fire warnings and automatically initiates fire suppression at the onset of a fire in the protected area.
Utilizing solid-state nitrogen drive and pressure-free storage, the device instantly pressurizes internally upon activation, with the valve opening at a set pressure. The extinguishing agent is sprayed for an extended effective duration and disperses more uniformly, rapidly and evenly covering the protected space through multi-directional nozzles.
This creates an immediate flooding effect, providing comprehensive protection to the safeguarded area and effectively preventing secondary fires.
Scope of Application:
The device is specifically engineered for high-temperature, fire-prone areas such as ship and vehicle engine compartments, battery compartments, and retarders. It is fixedly installed in these locations, suitable for harsh working environments, and possesses a certain level of shock resistance.
Specification Model
| Specification Model | FFX-ACD0.4-GKT |
|---|---|
| Type of Fire Extinguishing Agent | ABC ultra-fine dry powder fire extinguishing agent |
| Mass of Fire Extinguishing Agent (g) | 400 + 20 |
| Heat-induced Combustion Temperature (°C) | 175 ± 15 |
| Starting Method | Electric control, temperature control |
| Injection Time (s) | ≤ 5 |
| Operating Ambient Temperature (°C) | -40 ～ +90 |
| Safe Current (mA) | ≤ 250 |
| Starting Current (mA) | ≥ 800 |
| Operating Voltage (V) | DC 9 ～ 24 |
| Starting and Feedback Interface Type | 282104 - 1, 282080 - 1 |
| Weight (g) | 950 ± 50 |
| Overall Dimension (mm) | ∅ 95*170 |
