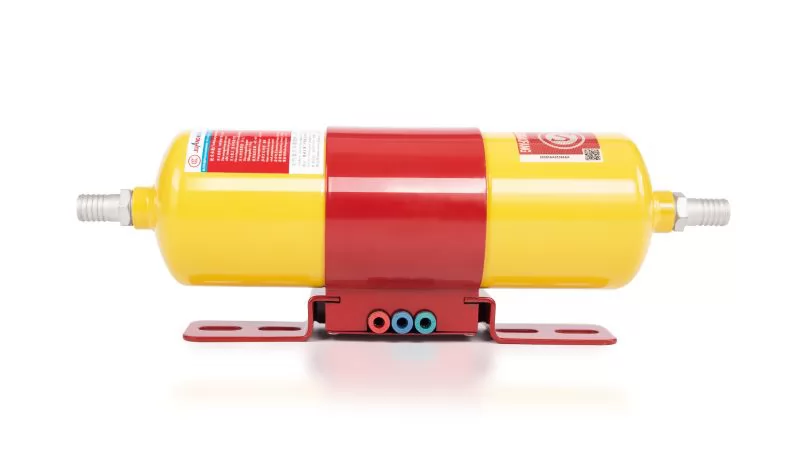

FFX-ACD_-GKC Series Automatic Pipeline-typed Superfine Powder Extinguishing Device
Description
This device can automatically detect and put out fire when fire happens.
The power-free self-actuating device, fast power-on trigger device (manual switch equipped to have the forced start) and start-up feedback device are available for option. Those start-up modes and those safeguards ensure the timely start-up and instant feedback. Equipped with early fire detection and alarm system, this device can give the early fire warning at early fire stage in the protected space, and the device will be automatically & timely started to put out fire.
The device adopts solid-state nitrogen dual-drive output and pressure-free storage. When this device is actuated, the inside will be filled with pressure instantly and then valve is opened at specified pressure.
By using the multi-nozzle pipe network transmission technology, the fire agent has a longer effective discharge time, and can be sprayed into the protected space along several directions in a quick and even way, and then the total flooding protection is formed in the protected space immediately, which will fully protect the protected objects and effectively prevent secondary fire occurring in the protected space.
Scope of application

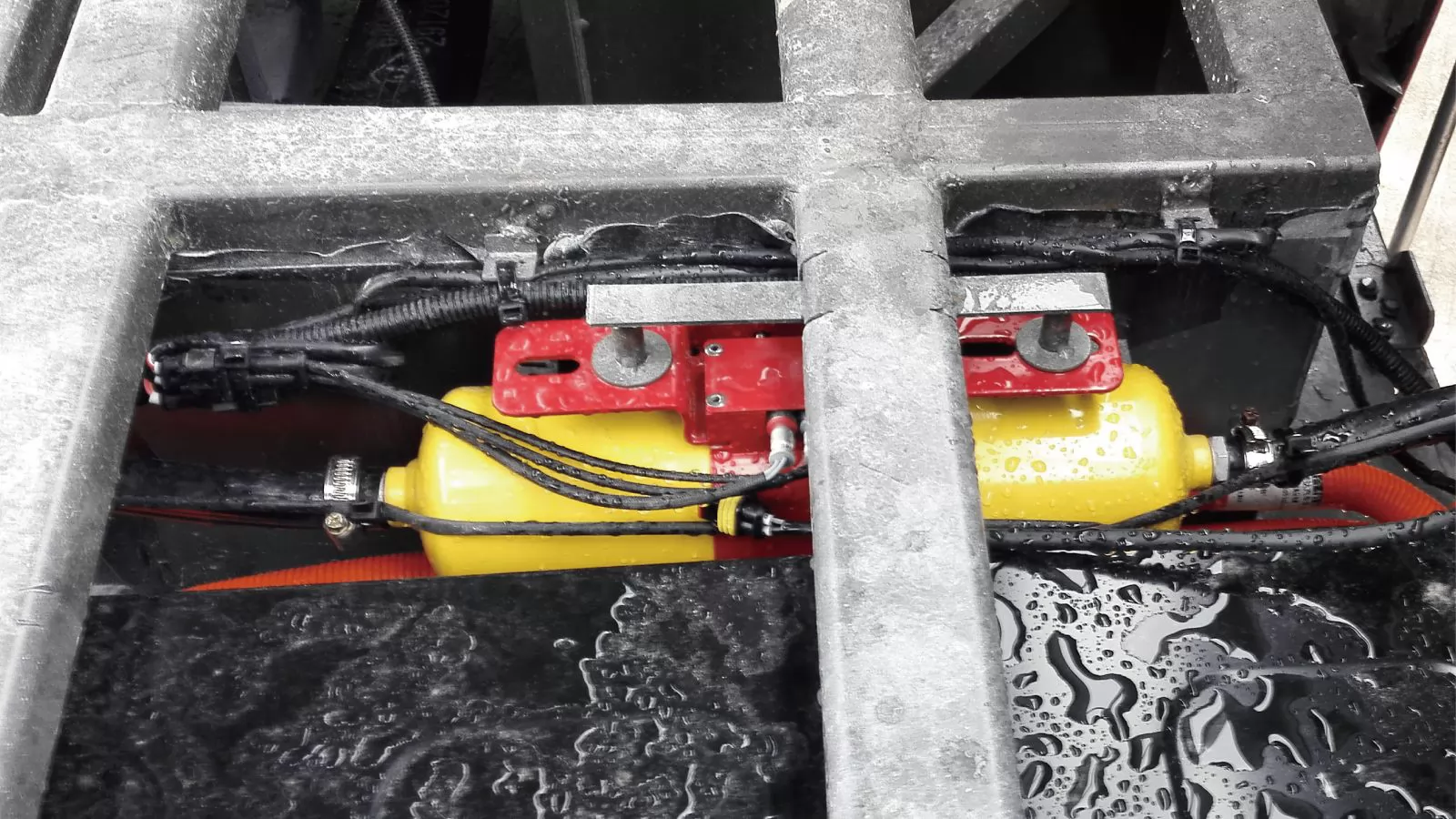

This device is specially designed for the places where the engine compartment, battery compartment, and retarder of ship and automobile are located. This device is fixedly installed on the high-temperature inflammable positions, which is suitable for the harsh working environment and has certain anti-shock capability.
| Model | FFX-ACD0.3-GKC | FFX-ACD0.4-GKC | FFX-ACD0.5-GKC | FFX-ACD0.6-GKC | FFX-ACD0.8-GKC | FFX-ACD1-GKC | FFX-ACD1.2-GKC |
|---|---|---|---|---|---|---|---|
| Fire agent type(g) | 300+15 | 400+20 | 500+25 | 600+50 | 800+40 | 1000+50 | 1200+50 |
| Heat-triggered actuation temperature(℃) | 175±15 | ||||||
| Start-up mode | Electronic or thermal control | ||||||
| Discharge time(s) | <5 | ||||||
| Aubutting ratio(℃) | 40~+80 | ||||||
| Safety current(mA) | <250 | ||||||
| Start-up current(mA) | >800 | ||||||
| Service voltage (V) | DC9~24 | ||||||
| Interface type | 282104-1 | 282104-1 | 174259-2 | 174259-2 | 282104-1 | 282104-1 | 282104-1 |
| Signal feedback | 282080-1 | 282080-1 | 174259-2 | 174259-2 | 282080-1 | 282080-1 | 282080-1 |
| Weight(g) | 1200±50 | 1300±50 | 1800±50 | 1900±50 | 2550±100 | 2800±100 | 3050±100 |
| Dimension (mm) | ∅60*425 | ∅60*413 | ∅75*385 | ∅75*385 | ∅90*370 | ∅90*420 | ∅90*485 |
