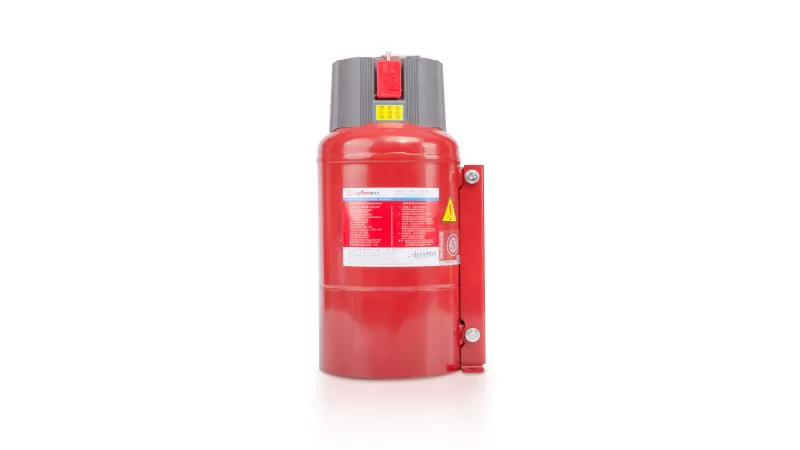

FFX-ACD2-GTC FFX-ACD4-GTC Automatic Pipeline-typed Fire Extinguishing Device

This device is specially designed for the places where the engine compartment, battery compartment, and retarder of ship and automobile are located. This device is fixedly installed in the high-temperature inflammable positions, which is suitable for the harsh working environment and has certain anti-shock capability. This device consists of driving agent, fire agent, fire agent storage tank, constant pressure relief valve, multi-nozzle agent distribution pipeline, trigging assembly (power-free self-actuating device, fast power-on trigger device), manual start-up switch, start-up feedback device, and mounting brackets etc. This device can automatically detect fire and automatically start to put out it when fire occurs. The power-free self-actuating device, fast power-on trigger device (manual switch equipped to have the forced start) and start-up feedback device are available for option. Those start-up modes and those safeguards ensure the timely start-up and instant feedback. Equipped with early fire detection and alarm system, this device can give the early fire warning at early fire stage in the protected space, and the device will be automatically & timely started to put out fire. This device employs solid-state nitrogen driving and pressure-free storage. When this device is actuated, the inside will be filled with pressure instantly and then the valve is opened at specified pressure. By using the multi-nozzle pipe network transmission technology, the fire agent has a longer effective discharge time, and can be sprayed into the protected space along several directions in a quick and even way, and then the total flooding protection is formed in the protected space immediately, which will fully protect the protected objects and effectively prevent secondary fire occurring in the protected space. It can also avoid the secondary fire caused by the failure that the multi-linked device can’t be started at the same time.

Scope of application

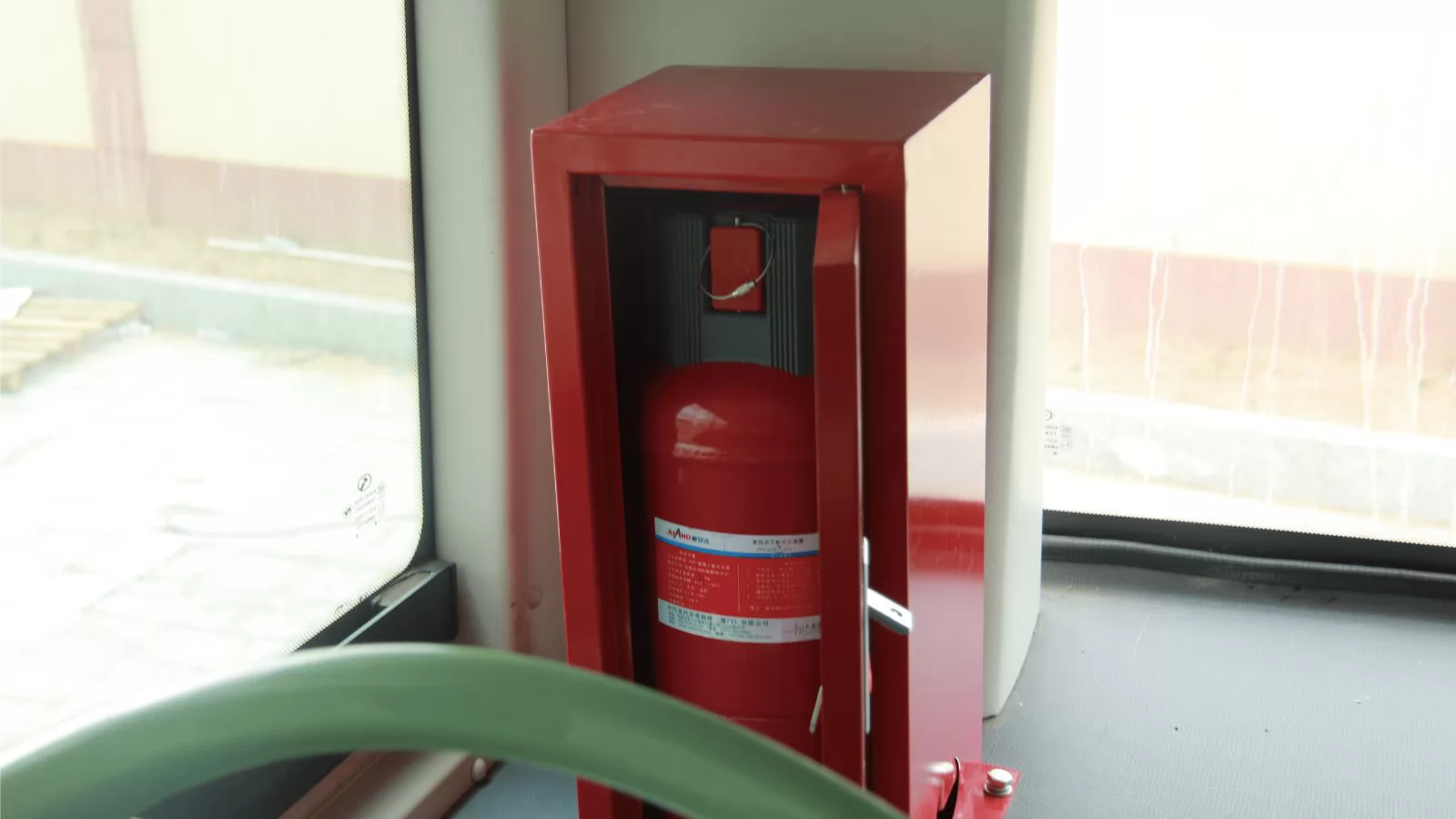

This device is specially designed for the places where the engine compartment, battery compartment, and retarder of ship and automobile are located. This device is fixedly installed on the high-temperature inflammable positions, which is suitable for the harsh working environment and has certain anti-shock capability.
