Multi-Functional Compressed Air Foam Fire Extinguishing System

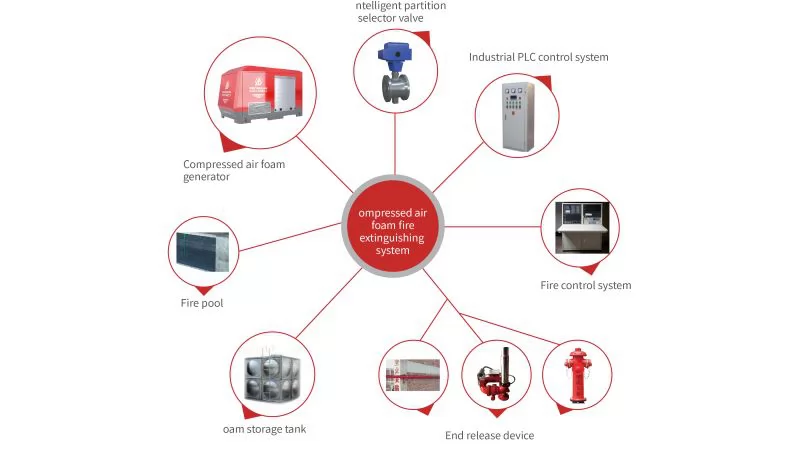

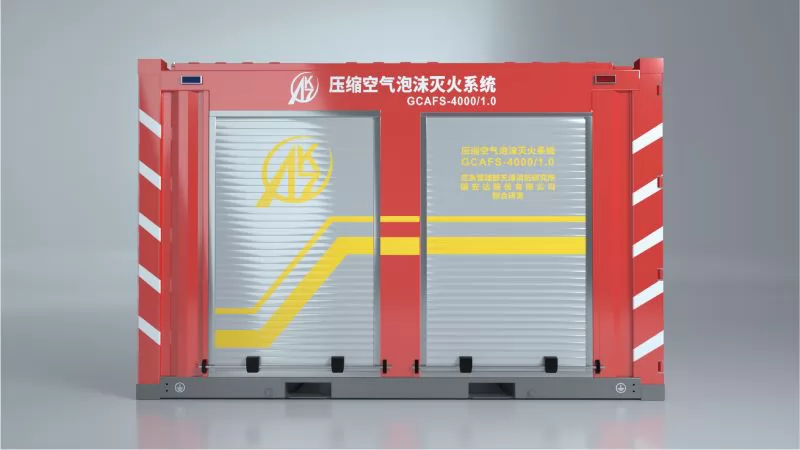

As the extinguishing agent supply end of the whole compressed air foam fire extinguishing system, the compressed air foam generating device is also the core part of the whole system working process, which is composed of working water pump and standby water pump, compressed air generating device, air storage tank, foam proportional mixing system, foam storage tank, safety valve, check valve, pressure sensor, regulating valve and system support. It can set different mixing ratio of foam and air, adjust the corresponding foaming multiple, and use different foam in different areas to extinguish different types of fire. It can adjust the flow rate within the maximum flow range to supply the fixed fire fighting robot and the square fire fighting robot, so as to achieve the ultimate purpose of fire fighting. The whole device integrates water, compressed air and foam stoste under the action of the mixer to produce a fine foam mixture, which plays a good role in suppressing and extinguishing oil fires. The compressed air foam generating device has the advantages of compact structure, high reliability, stable output pressure and flow rate with fine and durable foam.

System Features

1.Security Guarantee

To ensure the reliability of fire extinguishing and take the principle of economy into full consideration, two sets of fixed compressed air foam generation devices with the same flow and working pressure are configured in a converter station to provide two sets of compressed air foam fire extinguishing systems. Both mutually standby when one system is repaired, the other can provide fire extinguishing protection.

2.High Integration and Easy Installation

System integration design, factory quality instead of engineering quality.

High integration, compact structure, small occupation with convenient installation.

3.High Efficiency Extinguishing Agent

1% mixing ratio, less consumption, higher efficiency, jointly developed with Tianjin Fire Research Institute.

Quick Response and Efficient Fire Suppression

High gas-liquid mixing ratio, faster transmission speed in the pipeline, Which greatly shortening the system response time.

Due to the addition of foam extinguishing agent greatly changed the surface tension of water , water fire extinguishing efficiency is greatly improved to shorten fire extinguishing and fire control time.

Research shows that the fire extinguishing efficiency of water in compressed air foam reaches more than 80%.

4.Applicable for Various Scenarios

Wide foaming ratio adjustment range can produce different wet and dry conditions of foam for a variety of fire scenes such as UHV converter station, large substation, forest, construction , airport, cabin, automobile and oil. In addition, good energy foam is also suitable for long-distance and high-rise building fire rescue work.

5.Water Saving and Low Consumption

Water saving with low consumption and use cost. For the same size of fire, the water use of the system is only 1/10 of that of conventional foam;

With the same amount of water, it is seven times more effective than traditional fire extinguishing.
