Description
This is a patented product developed by Guo Anda Co., Ltd., which has strong maneuverability, can be repeatedly filled on site, and can produce new and efficient compressed-air foam. It is used for efficient fire- extinguishing and decontamination. It uses compressed air as power, works completely independently, and is environment-friendly and safe. It has fast moving and high efficiency and powerful fire extinguishing and decontamination. It is especially suitable for electric power, transportation, military fire-extinguishing, subway stations, large underground buildings, fire brigades, highway, etc.
System Features
1.High-Efficient Extinguishing, Quick Decontamination
Positive compressed-air foaming principle, i.e. CAFS, is adopted, which ensures high-efficient fire extinguishing and decontamination.Class: 20A, 297B (Please see GB4351-2005 for fire-extinguishing class).
2.Continuous Suppression, Long Coverage
The system has been verified by multiple fire tests, and can quickly extinguish and continuously suppress various types of fires for a long time.
The spray distance of up to 20 meters can effectively prevent the spread of fires.
3.Multiple Modes, Tailored System
This system can be installed in a fixed way, or be used in the protected area in a mobile way, or flexibly installed on various types of patrol vehicles.We can also customize similar devices with special models for our clients.
4.Convenient Replacement, Continuous Usage
The installation of gas cylinders and the design of foam concentrate tank are suitable for rapid on-site replacement and foam concentrate filling, which can ensure that it can continuously and effectively perform fire extinguishing and decontamination. It is superior to the imported pressurized foam concentrate tank, and the battery life is longer.
5.Flexible and Easy Operation

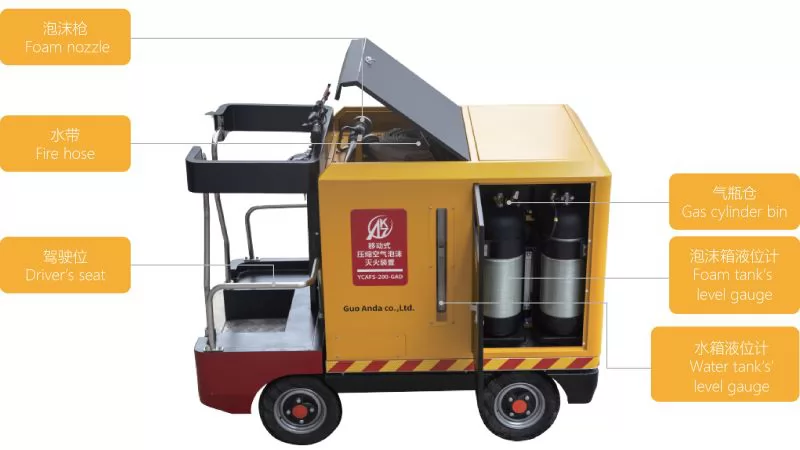

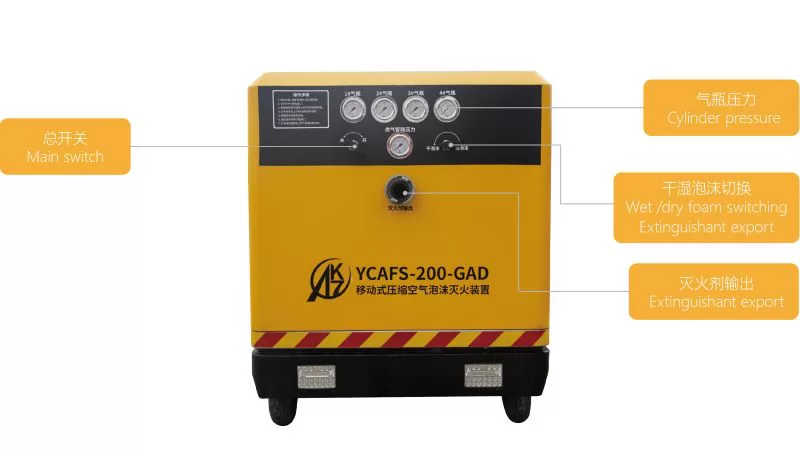

When a fire occurs, personnel can quickly drive to the fire point, take out and connect the fire hose and foam nozzle, open the cylinder valve and main switch, and use the foam nozzle to spray to quickly extinguish the fire.
6.Quick filling, Continuous Usage
After the fire-extinguishing system is used, the water, foam concentrate and gas cylinders can be filled again. Also the system can be plugged in to cope with sudden demand again.
| Item | Parameter |
|---|---|
| Volume of Extinguishing Tank | Water Tank: 200 L; Foam Tank: 30 L |
| Spray Range | > 20 m |
| Extinguishing Capacity | 20 A, 297 B |
| Weight | 550 Kg (incl. cart, fire hose, foam nozzle, and full-loaded water tank, foam concentrate tank, and cylinders) |
| Cylinder Volume | 12 L, 4 Pcs (max. working pressure: 30 MPa) |
| Ambient Temperature | 0°C ~ 65°C (> 0°C during daily storage) |
